Road Reinstatement Equipment

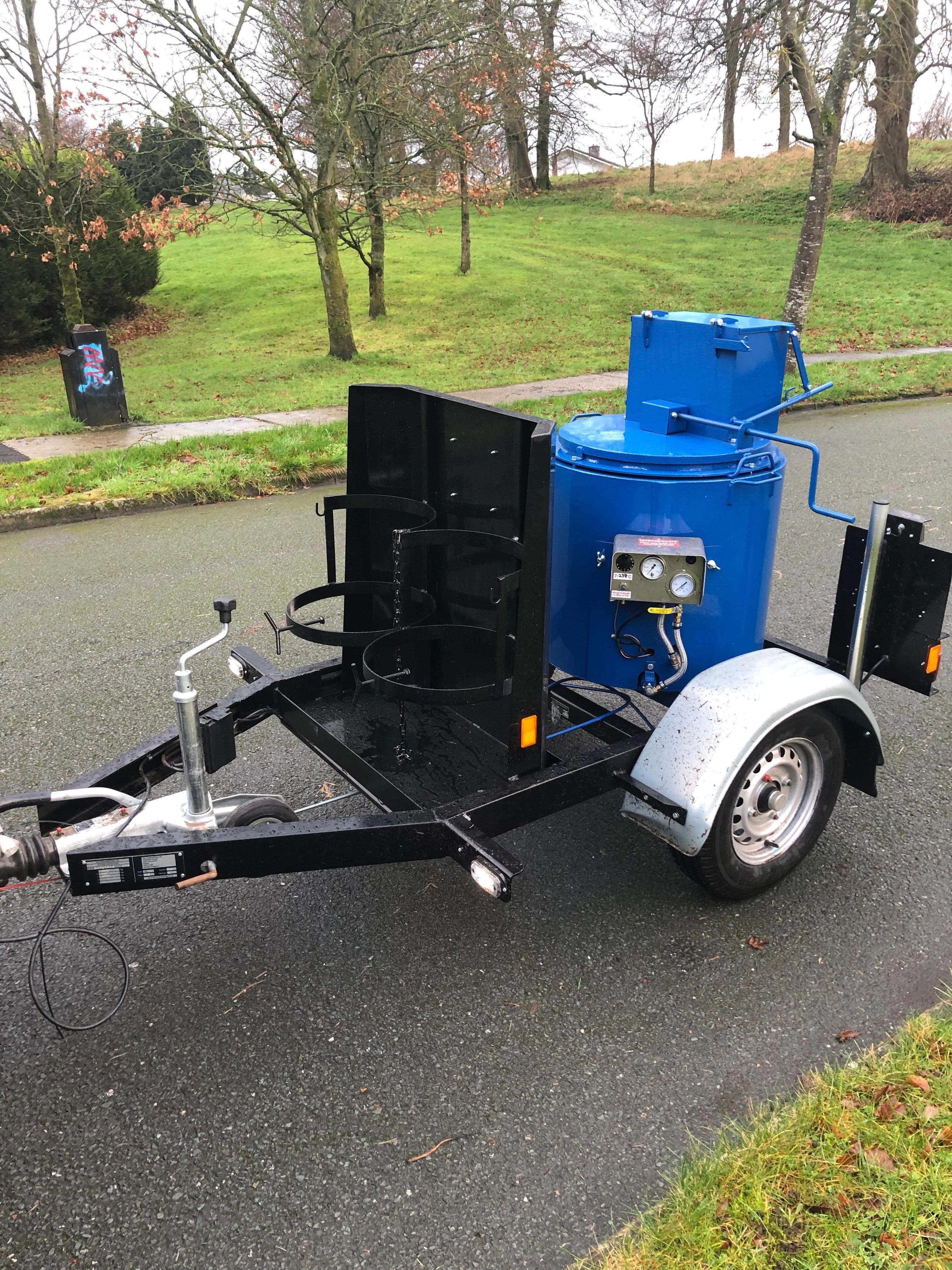

Road Reinstatement Equipment - Clegg Impact Hammers - Bitumen Boilers - Cone Penetrometers - Graduated Wedges
.jpg)

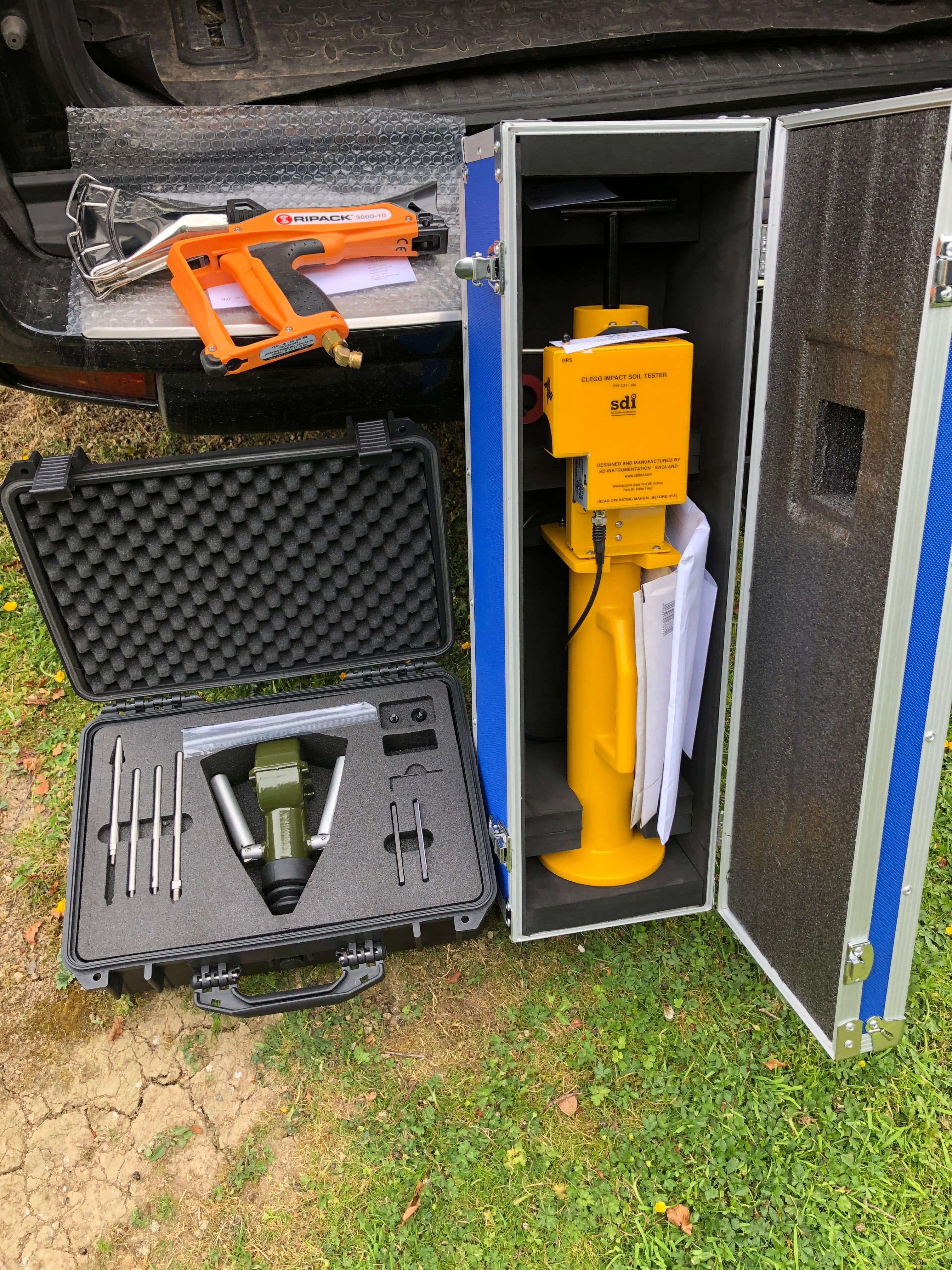

Clegg Impact Hammers
There are three 4.5 Kg Clegg Impact Soil Tester versions of the type used for trench re-instatement quality control. Two of them have data logging. All three models use a 4.5 Kg hammer but the recording electronics are different. Brief descriptions of these are given below:- The 4.5 KG CIST/882 (Non Data Logging):-This is the straightforward classic type. The user holds the readout in one hand and carries out the hammer testing with the other. User selection of %Californian Bearing Ration (CBR) is provided. No data logging is provided with this model. The 4.5 Kg CIST/883:-This model has the readout unit clamped to the Guide Tube with a vertical display so the user does not hold the readout when testing. It stores test data in memory against a time and date stamp. Data download to a PC is by Bluetooth and all accessories are provided. User selection of %Californian Bearing Ration (CBR) is provided. The 4.5 Kg CIST/884:-This model has the same data storing, %CBR, Bluetooth and design features of the CIST/883 above but is equipped with integral Global Positioning. The test results are referenced by longitude and latitude fix. It stores a file readable directly by Google maps and Google Earth that shows the test locations as yellow pin placements on a map with the test results alongside. GB Ordnance Survey grid references that are preferred for reporting purposes are produced too, to a resolution of 1 metre. The price each is approximately As a guide for deciding which of the above 4.5 Kg instruments to select, a brief summary is offered as follows:- CIST/882: With this model the readout is held in the hand. It is satisfactory if site test data logging is not required.CIST/883: This unit provides data logging and Bluetooth (if required) and is slightly easier to operate because the readout unit does not require holding.CIST/884: This version has all the CIST/883 features but the CIST/884 fitted with GPS also provides longitude and latitude test location data.
Cone Penetrometer
.jpg)

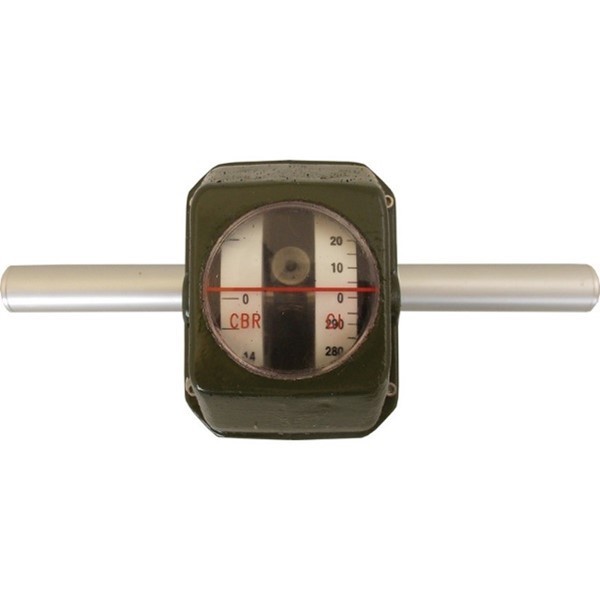

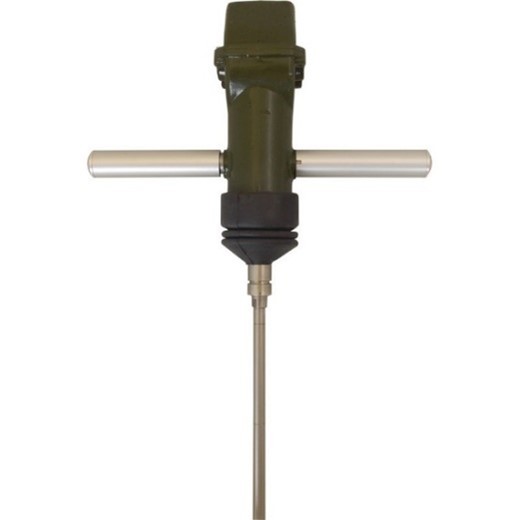

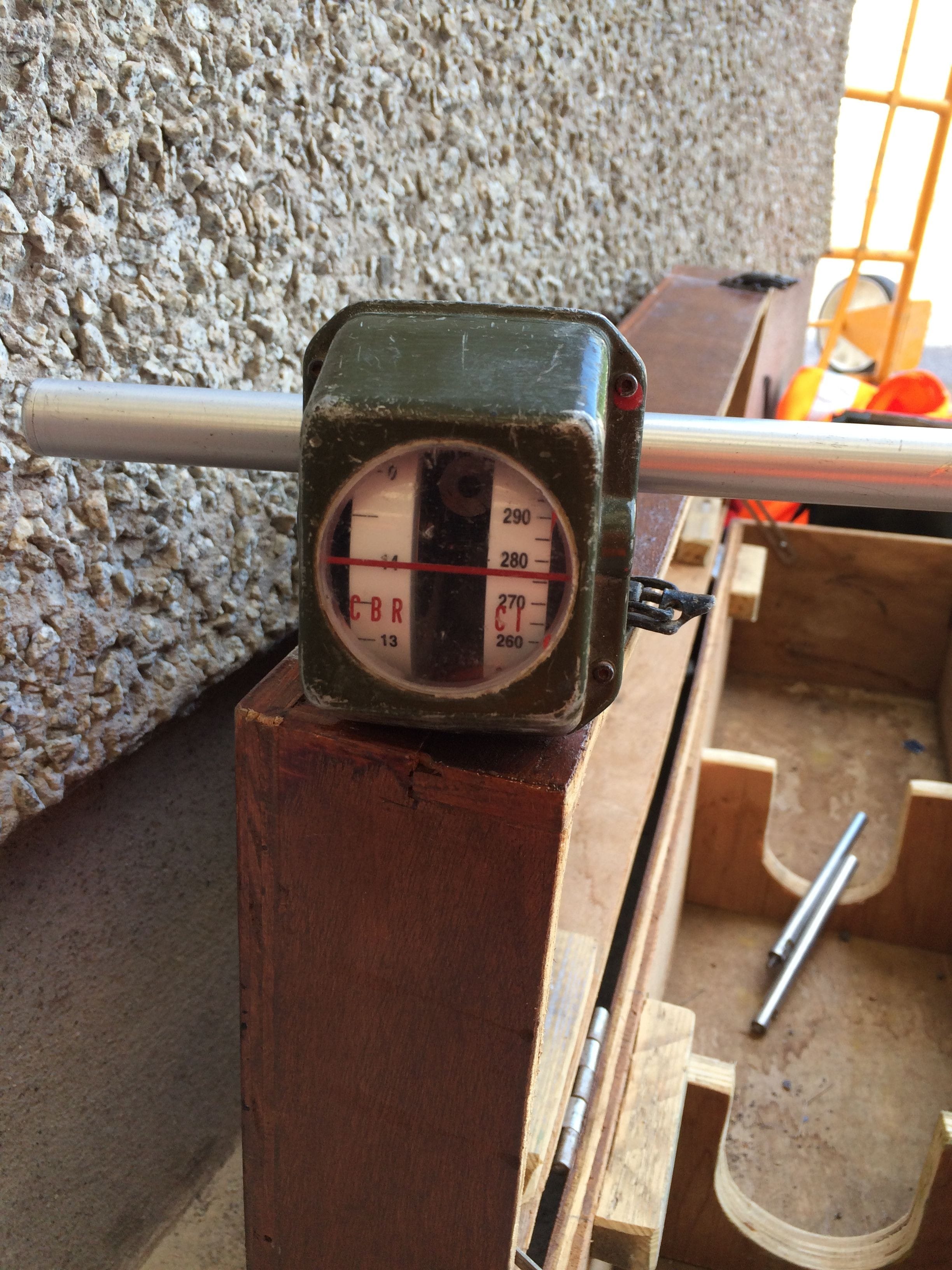

The Soil Assessment Cone Penetrometer (SACP or MEXE Probe) is a lightweight instrument for rapidly measuring in-depth resistance to penetration, indicating with a dial, in terms of California Bearing Ratio (CBR).
The Mexe probe is a robust and reliable instrument used throughout the world by both commercial and military establishments.
• Measurement range for CBR is from 0-15% CBR.
• Soil trafficability measurements can be made using the Cone Index (CI) range.
• The linear CI range is from 0-300 and has 60 divisions, each of 11.12N (1.13kgf). Full deflection is 667N (67.9kgf).
• Steady penetration of the cone into the soil is required and readings are taken from the dial at 75mm (3”) intervals during penetration to a maximum depth of 600mm (24”).
• In fine-grained soils, for which the SACP is primarily intended, measurements correlate closely with CBR values, measured in-situ with conventional equipment.
• The Mexe probe is supplied complete with carrying case, which contains one CBR cone, one CI cone, one top rod, three extension rods (150mm each), tools and operating instructions.

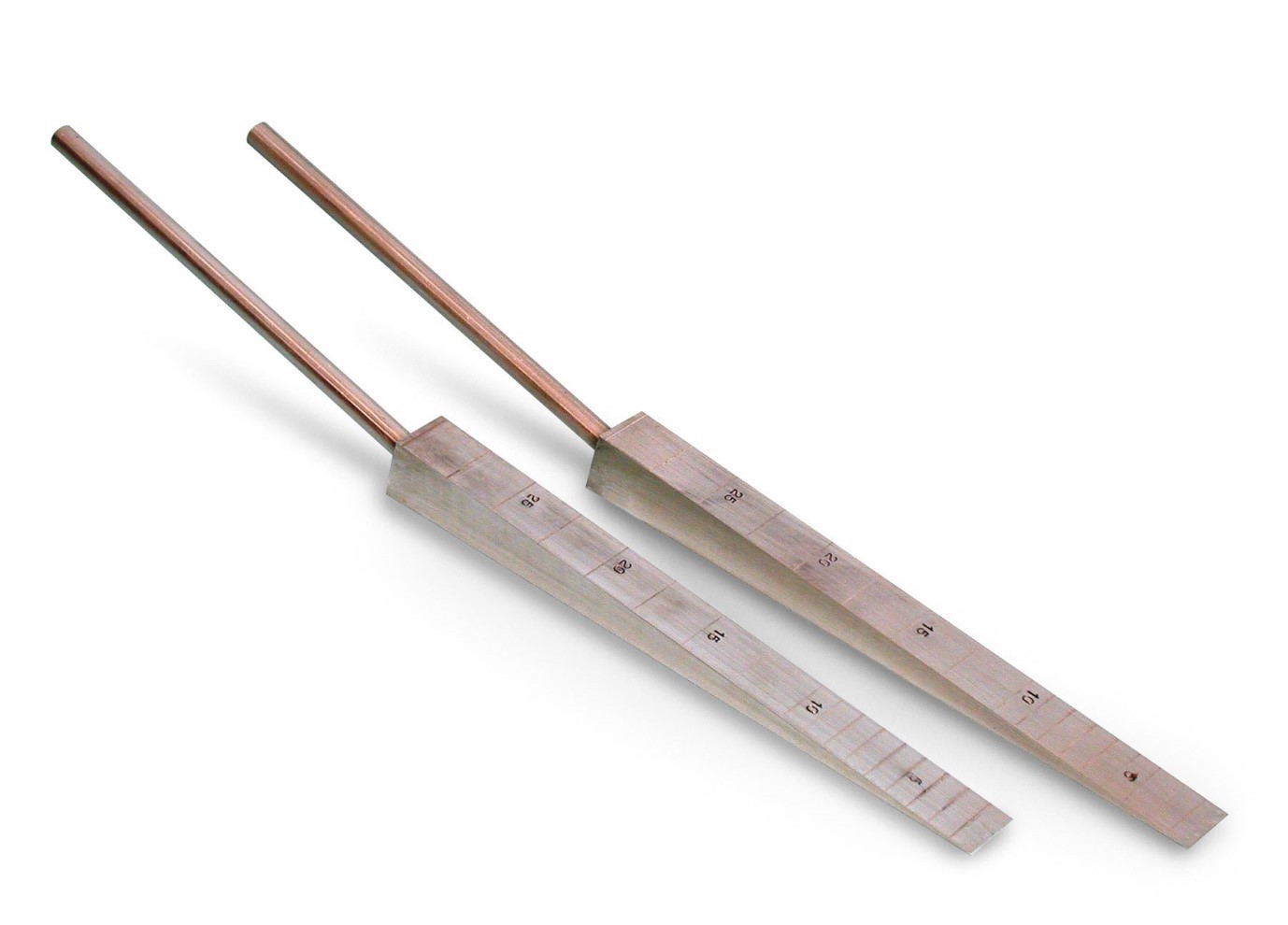

Graduated Wedges
Graduated wedges, anodized aluminium alloy (set of two).

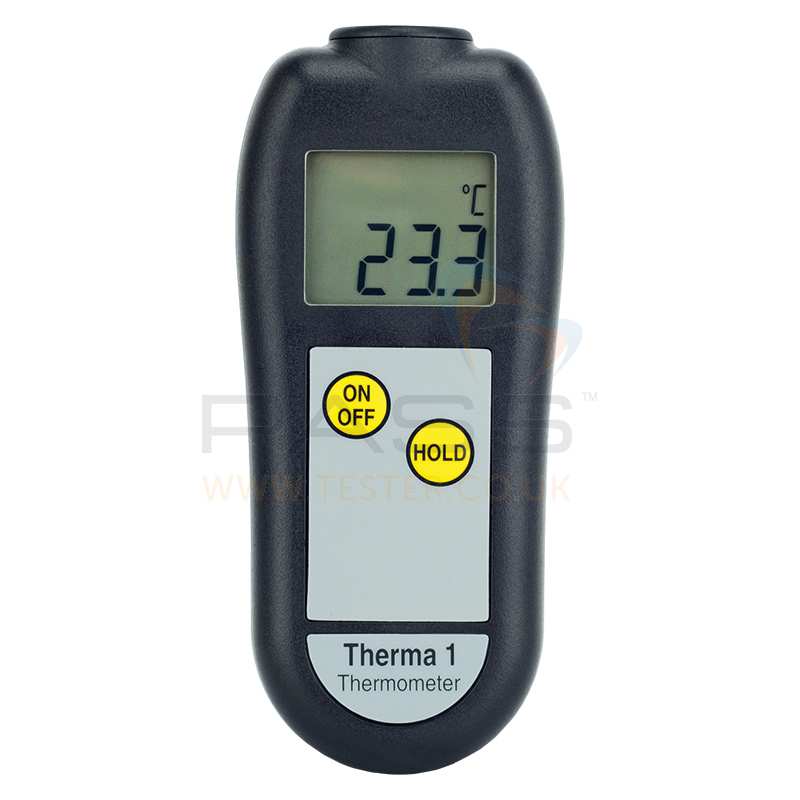

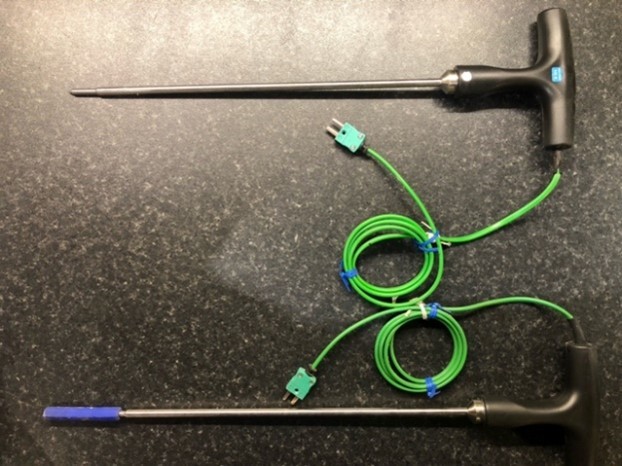

Thermometer & Probe
.jpg)
